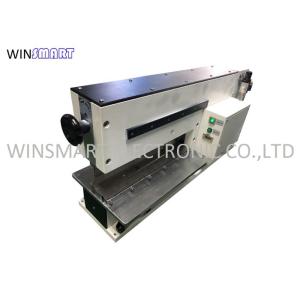

V Cut Groove PCB Separator Depaneling Machine for FR4 / Aluminum Boards

Advantages:

1. Pneumatic driven, electric hybrid design, double straight knife cutting, sutiable for dividing precision SMD sheet, aluminum circuit board.

2. Suitable for all thickness PCB, cutting board stroke is less than 2mm, no operational safety concerns.

3. Reduce the internal stress generated when cutting the board to below 180μST to avoid tin cracking and prevent damage to precision parts.

4. Cut the edge of the V groove and the width of the part is 0.3mm, the height is 50mm.

5. Blades can be re-sharpened

6. Cutting stress is less than 500 uE.

Principle:

It uses two linear blades to separate boards with less stress, like a scissor.

And operator cannot mis-feed boards.

It is widely used in modern V-score PCB industry, improve cutting effect to avoid component damage.

Specification:

Machine Display:

Working in Customer's Workshop:

Factory established in 2005, has built and maintained its reputation as a source of technical

and professional excellence.

Winsmart has a driven, experienced, and knowledgeable team, providing extensive array of solutions

for PCB depaneling and soldering. Above all, it takes pride in the quality and efficient service that it

provides to customers, which is reflected by long-standing relationships across a diverse customer base.

Winsmart will continue to meet customers' requirements by supplying the excellent solution with

unique technology and service!
